High Availability Quick Installation Guide for KVM

This guide explains how to set up a kvm cluster for KVM using SafeKit, ensuring automatic failover and synchronous replication without the need for shared storage.

For help, you can use SafeKit AI 🤖.

1. Overview

• Architecture: Uses a two-node system (Primary/Secondary).
• Data Protection: Implements real-time synchronous replication for zero data loss (RPO=0).

2. Installation

• Software: Install the SafeKit engine on both servers.
• Module: Download the pre-configured kvm.safe application module.

3. Configuration

• Web Console: Configure the specific folders containing the KVM files.
• Monitoring: Start monitoring and protecting the KVM application.

SafeKit High Availability Limitations

Why a replication of a few Tera-bytes?

Resynchronization time after a failure (step 3)

• 1 Gb/s network ≈ 3 Hours for 1 Tera-bytes.
• 10 Gb/s network ≈ 1 Hour for 1 Tera-bytes or less depending on disk write performances.

Alternative

• For a large volume of data, use external shared storage.
• More expensive, more complex.

Why a replication < 1,000,000 files?

• Resynchronization time performance after a failure (step 3).
• Time to check each file between both nodes.

Alternative

• Put the many files to replicate in a virtual hard disk / virtual machine.
• Only the files representing the virtual hard disk / virtual machine will be replicated and resynchronized in this case.

Why a failover ≤ 32 replicated VMs?

• Each VM runs in an independent kvm module.
• Maximum of 32 kvm modules running on the same cluster.

Alternative

• Use an external shared storage and another VM clustering solution.
• More expensive, more complex.

Why a LAN/VLAN network between remote sites?

• Automatic failover of the virtual IP address with 2 nodes in the same subnet.
• Good bandwidth for resynchronization (step 3) and good latency for synchronous replication (typically a round-trip of less than 2ms).

Alternative

• Use a load balancer for the virtual IP address if the 2 nodes are in 2 subnets (supported by SafeKit, especially in the cloud).
• Use backup solutions with asynchronous replication for high latency network.

Overview of the SafeKit / KVM solution

The solution is described here: Simple Linux KVM High Availability without Shared Storage

Installation of the SafeKit / KVM solution on Linux (kvm.safe)

Prerequisites

• KVM installed on 2 Linux nodes.
• Critical applications installed inside one or more virtual machines.
• Maximum 32 virtual machines per KVM host.
• Total replicated data limited to a few terabytes — beyond this, resynchronization time becomes significant.
• Minimum 1Gb/s interconnect between nodes (10Gb/s recommended for faster resynchronization).
• IP failover requires both nodes on the same LAN or extended LAN (L2) — routed L3 networks not supported (except with cloud load balancers).

Package installation on Linux

• Install the free version of SafeKit on 2 Linux nodes. Note: the free trial includes all SafeKit features. At the end of the trial, you can activate permanent license keys without uninstalling the package.
• After the download of safekit_xx.bin package, execute it to extract the rpm and the safekitinstall script and then execute the safekitinstall script
• Answer yes to firewall automatic configuration
• Set the password for the web console and the default user admin. Set the same password on all nodes.

Download SafeKit (Linux) >

Module installation on Linux

• Download the kvm.safe module.
  The module is free. It contains the files userconfig.xml and the restart scripts.
• Put kvm.safe under /opt/safekit/Application_Modules/generic/.

⬇️ Download kvm.safe (Linux) >

Step by step configuration of the SafeKit / KVM solution

The KVM configuration is presented with a virtual machine named `VM1` and containing the application to restart in case of failure.

You will have to repeat this configuration for all VMs that you want to replicate and to restart.

1. Prerequisites

The VM1 virtual machine image is in the file /var/lib/libvirt/images/vm1.qcow2. Before configuring SafeKit, you must perform the following configuration to place the virtual machine in a vm1-specific directory that will be replicated by SafeKit.

On node 1:

• Stop vm1:

  virsh shutdown vm1


• Create a vm1/ directory:

  mkdir -p /var/lib/libvirt/images/vm1/


• Copy the vm1 image to the new location:

  cp -a /var/lib/libvirt/images/vm1.qcow2 /var/lib/libvirt/images/vm1/


The original vm1 image can be deleted as soon as tests with the new location are successfull.

• Edit the vm1 configuration file:

  EDITOR=vi virsh edit vm1


And change the line:

    <source file='/var/lib/libvirt/images/vm1.qcow2'>

by :

    <source file='/var/lib/libvirt/images/vm1/vm1.qcow2'>

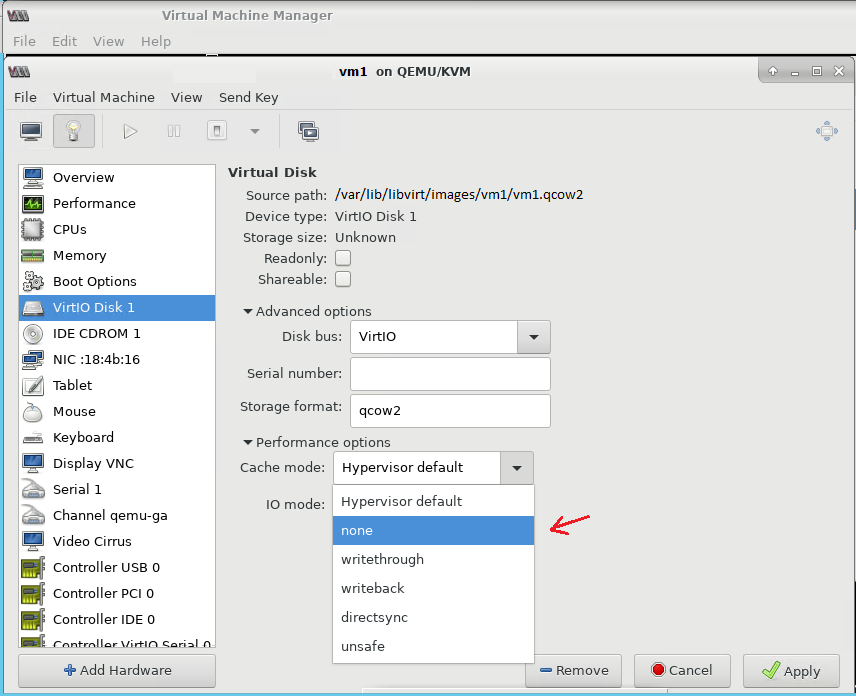

• Set the cache option to ’none’ in the same file, for data integrity in case of crash:

  <disk type='file' device='disk'> <driver name='qemu' type=’qcow2’ **cache='none'** />


• Close the vm1 configuration file

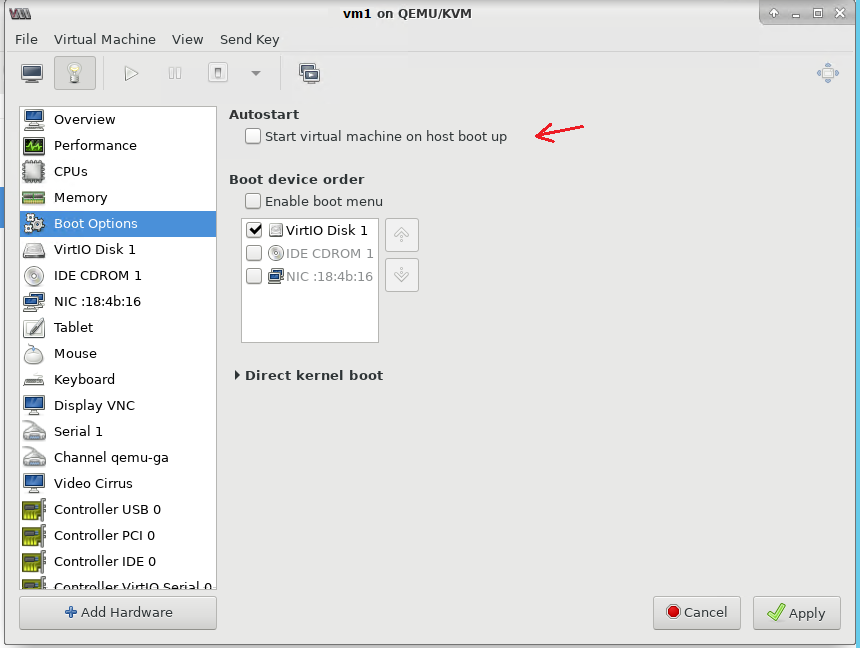

• Disable vm1 automatic start:

  virsh autostart vm1 --disable


• Create a vm1.xml configuration file for vm1:

  virsh dumpxml vm1 > vm1.xml


On node 2:

• Copy the vm1.xml configuration file from node 1. Note: whenever vm1 configuration is changed on node 1, you must reapply the new configuration on node 2.

• Create vm1 but do not start it:

  virsh define vm1.xml


• Disable vm1 automatic start:

  virsh autostart vm1 --disable


• Create the directory for the image location:

  mkdir -p /var/lib/libvirt/images/vm1/


2. Launch the SafeKit console

• Launch the web console in a browser on one cluster node by connecting to http://localhost:9010.
• Enter admin as user name and the password defined during installation.

You can also run the console in a browser on a workstation external to the cluster.

The configuration of SafeKit is done on both nodes from a single browser.

To secure the web console, see 11. Securing the SafeKit web service in the User's Guide.

3. Configure node addresses

• Enter the node IP addresses, press the Tab key to check connectivity and fill node names. If either node1 or node2 has a red color, check connectivity of the browser to both nodes and check firewall on both nodes for troubleshooting.
• Then, click on Save and apply to save the configuration.
• Check the Success ✅ message on both nodes.
• If the configuration Failure ❌ occurs on one node, open the ▼ accordion for that node and review the messages. Note that you can use the SafeKit AI 🤖 for assistance.

If you want, you can add a new `LAN and nodes` ( first ➕) to create a second heartbeat and a dedicated replication network.

If you click on `Advanced configuration`, the `cluster.xml` file is displayed. This file is automatically populated by the console and deployed on the nodes.

4. Select a module

• In New module, click on the kvm.safe module.

In the blue banner at the top, 🛜 `node1` represents the console connection node. This node relays requests to `node2` when required.

The console looks for `xxx.safe` in the `Application_Modules/generic/` directory on the connection node (`node1`) if you placed a module there during installation.

5. Configure the module

• Choose an Automatic start of the module at boot without delay.
• Normally, you have a single Heartbeat network on which the replication is made. But, you can define a private network if necessary (by adding a LAN at step 3).
• Put in VM_PATH, the root path of the replicated directory (/var/lib/libvirt/images).
• Enter in VM_NAME, the name of the virtual machine (vm1).

We assume that the VM1 files are in /var/lib/libvirt/image/vm1/ (see prerequisites). This directory will be replicated in real-time by SafeKit.

You do not need to configure a virtual IP address. VM1 will be rebooted on the secondary KVM with its physical IP address, and this IP address will be rerouted.

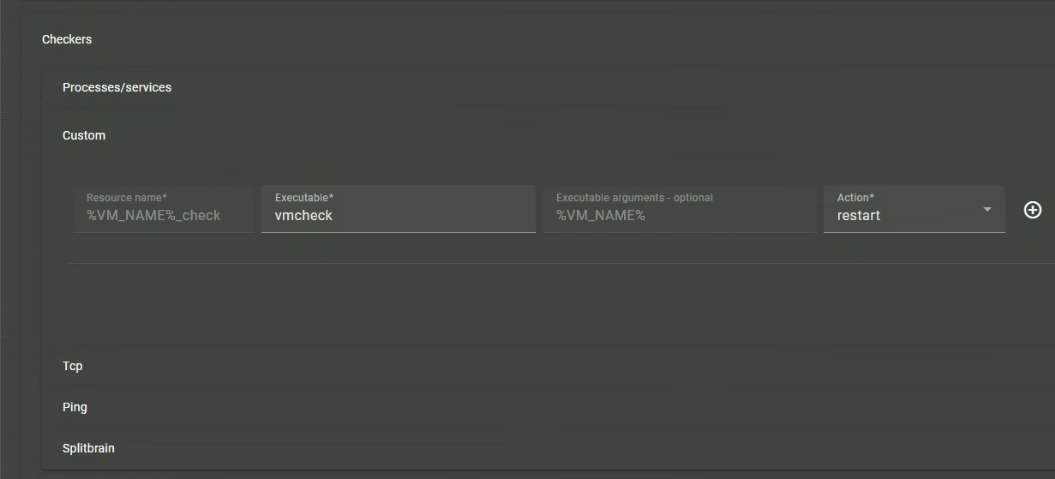

6. Custom checker to detect VM malfunction

The custom checker checks if the VM is running (with the ‘virsh domstate’ command). If the VM is not running, the custom checker automatically restarts the VM on the same KVM node or on the other.

• Click on Checkers / Custom (see image).
• Resource name identifies the virtual machine with a resource name in SafeKit: custom.VM_NAME_check.
• With restart in Action, the VM is restarted on the same KVM node. After 3 unsuccessful restarts in 24 hours, the SafeKit kvm module stops on the primary node and there is a failover of the VM on the secondary node.
• If you set stopstart in Action, there is a direct failover on the other KVM node as soon as the VM is not running.

For maintenance, if you want to stop the virtual machine, the custom checker will restart it automatically. To avoid that, you can temporarly suspend the checker 🖼️. Or you can remove it by deleting the configuration line in the console.

7. Edit scripts (optional)

• Do not edit scripts.

8. Communication encryption (optional)

• Keep encryption of communication between nodes.

9. Save and apply

• Save and apply the configuration and scripts on both nodes.

10. Verify successful configuration

• Check the Success ✅ message on both nodes and click on Monitor modules.
• If the configuration Failure ❌ occurs on one node, open the ▼ accordion for that node and review the messages. Note that you can use the SafeKit AI 🤖 for assistance.

11. Start the node with up-to-date data

• If node 1 has the up-to-date replicated directory for vm1/, select it and ⋯ Force start ▶ As primary.

When node 2 will be started, all data will be copied from node 1 to node 2.

If you make the wrong choice, you run the risk of synchronizing outdated data on both nodes.

It is also assumed that `VM1` is stopped on node 1 so that SafeKit installs the replication mechanisms and then starts `VM1` in the `start_prim` script.

Use `Start` for subsequent starts: SafeKit retains the most up-to-date server. Starting `As primary` is a special start-up the first time or during exceptional operations.

12. Wait for the transition to ALONE (green)

• Node 1 should reach the ALONE (green) state, which means that the start_prim script has been executed on node 1.

If ALONE (green) is not reached or if VM1 is not started, analyze why with the module log 🖼️ of node 1.

• Click the 🔍 log icon of node1 to open the module log and look for error messages such as a checker detecting an error and stopping the module.
• Click on start_prim in the log: output messages of the script are displayed on the right and errors can be detected such as VM1 incorrectly started.
• Use the SafeKit AI 🤖 for assistance with log messages.

If the cluster is in `WAIT (red) not uptodate, STOP (red) not uptodate` state, stop the WAIT node and force its start as primary 🖼️.

13. Start node 2

• ⋯ Start node 2 with its contextual menu.
• Wait for the SECOND (green) state.

Node 2 stays in the SECOND (orange) state while resynchronizing the replicated directories (copy from node 1 to node 2).

This may take a while depending on the size of files to resynchronize in replicated directories and the network bandwidth.

To see the progress of the copy, see the module log 🖼️ and the replication resources 🖼️ of node 2. Use the SafeKit AI 🤖 for assistance with log messages.

14. Verify that the cluster is operational

• Check that the cluster is green/green with VM1 running on the PRIM node and not running on the SECOND node.

Only changes inside files are replicated in real time in this state.

15. Testing

• Stop the PRIM node by scrolling down its contextual menu and clicking Stop.
• Verify that there is a failover on the SECOND node which should become ALONE (green).
• Check with KVM tools that VM1 is running on node 2.

If ALONE (green) is not reached on node2 or if VM1 is not started, analyze why with the module log 🖼️ of node 2.

• Click the 🔍 log icon of node2 to open the module log and look for error messages such as a checker detecting an error and stopping the module.
• Click on start_prim in the log: output messages of the script are displayed on the right and errors can be detected such as VM1 incorrectly started.
• Use the SafeKit AI 🤖 for assistance with log messages.

If everything is okay, initiate a start on node1, which will resynchronize the replicated directories from node2.

If things go wrong, stop node2 and force the start as primary 🖼️ of node1, which will restart with its locally healthy data at the time of the stop.

Note that you have a 🕒 **timeline 🖼️** that can be helpful to understand what happens in the cluster.

16. If necessary, configure a splitbrain checker

• See What are the different scenarios in case of network isolation in a cluster? to know if you need to configure a splitbrain checker.
• Go to the module configuration and click on Checkers / Splitbrain (see image) to edit the splitbrain parameters.
• Save and apply the new configuration to redeploy it on both nodes (module must be stopped on both nodes to save and apply).

Parameters :

• Resource name identifies the witness with a resource name: splitbrain.witness. You can change this value to identify the witness.
• Witness address is the argument for a ping when a node goes from PRIM to ALONE or from SECOND to ALONE. Change this value with the IP of the witness (a robust element, typically a router).
• Note: you can set several IPs separated by white spaces. Pay attention that the IP addresses must be accessible from one node but not from the other in the event of network isolation.

17. Replicating snapshots

The directory that contains the snapshot xml files is:

/var/lib/libvirt/qemu/snapshot/%VM_NAME%

where VM_NAME is the name of the virtual machine (vm1).

Note: If no snapshot has been created, create one to generate the directory (else the SafeKit configuration will fail).

To replicate it:

• In the module configuration, click on Advanced Configuration (see image) to edit userconfig.xml.

• Insert the lines below into the <rfs> section of userconfig.xml:

  <replicated dir="/var/lib/libvirt/qemu/snapshot/%VM_NAME%" mode="read_only"> </replicated>


• Save and apply the new configuration to redeploy the modified userconfig.xml file on both nodes (module must be stopped on both nodes to save and apply).

• Create snapshots on the PRIM node either through virt-manager or a command line:

  virsh snapshot-create-as vm1 snapshot-name


Note: when creating a snapshot with a command line, you have to refresh the snapshot view into virt-manager.

Snapshots created on the PRIM node are operationnal on node 2 after failover, but not listed on node 2.

• For importing a snapshot on node 2, you have to run the command:

  virsh snapshot-create --redefine vm1 /var/lib/libvirt/qemu/snapshot/vm1/snapshot-name


• The command line for listing all snapshots of vm1 is:

  virsh snapshot-list vm1


18. Support

• For getting support, take 2 SafeKit Snapshots (2 .zip files), one for each node.

More information on the support here.
