Hyper-V High Availability with SafeKit: Install the hyperv.safe Module for Failover

High Availability Quick Installation Guide for Hyper-V

This guide explains how to set up a hyperv cluster for Hyper-V using SafeKit, ensuring automatic failover and synchronous replication without the need for shared storage.

For help, you can use SafeKit AI 🤖.

1. Overview

• Architecture: Uses a two-node system (Primary/Secondary).
• Data Protection: Implements real-time synchronous replication for zero data loss (RPO=0).

2. Installation

• Software: Install the SafeKit engine on both servers.
• Module: Download the pre-configured hyperv.safe application module.

3. Configuration

• Web Console: Configure the specific folders containing the Hyper-V files.
• Monitoring: Start monitoring and protecting the Hyper-V application.

SafeKit High Availability Limitations

Why a replication of a few Tera-bytes?

Resynchronization time after a failure (step 3)

• 1 Gb/s network ≈ 3 Hours for 1 Tera-bytes.
• 10 Gb/s network ≈ 1 Hour for 1 Tera-bytes or less depending on disk write performances.

Alternative

• For a large volume of data, use external shared storage.
• More expensive, more complex.

Why a replication < 1,000,000 files?

• Resynchronization time performance after a failure (step 3).
• Time to check each file between both nodes.

Alternative

• Put the many files to replicate in a virtual hard disk / virtual machine.
• Only the files representing the virtual hard disk / virtual machine will be replicated and resynchronized in this case.

Why a failover ≤ 32 replicated VMs?

• Each VM runs in an independent hyperv module.
• Maximum of 32 hyperv modules running on the same cluster.

Alternative

• Use an external shared storage and another VM clustering solution.
• More expensive, more complex.

Why a LAN/VLAN network between remote sites?

• Automatic failover of the virtual IP address with 2 nodes in the same subnet.
• Good bandwidth for resynchronization (step 3) and good latency for synchronous replication (typically a round-trip of less than 2ms).

Alternative

• Use a load balancer for the virtual IP address if the 2 nodes are in 2 subnets (supported by SafeKit, especially in the cloud).
• Use backup solutions with asynchronous replication for high latency network.

Overview of the SafeKit / Hyper-V solution

The solution is described here: Simple Hyper-V High Availability Without Shared Storage (SAN)

Installation of the SafeKit / Hyper-V solution on Windows (hyperv.safe)

Prerequisites

• Hyper-V role installed on 2 Windows nodes (embedded for free in all Windows versions including Windows for PC).
• Critical applications installed inside one or more virtual machines.
• Maximum 32 virtual machines per Hyper-V host.
• Total replicated data limited to a few terabytes — beyond this, resynchronization time becomes significant.
• Minimum 1Gb/s interconnect between nodes (10Gb/s recommended for faster resynchronization).
• IP failover requires both nodes on the same LAN or extended LAN (L2) — routed L3 networks not supported (except with cloud load balancers).

About products under Siemens LMS licensing

• To avoid the broken Siemens license on failover, the dongle containing the Siemens key can be put in a USB over IP device (like DIGI AnywhereUSB).
• The dongle can also be put in an external PC with the LMS license server on the PC.
• In recent versions of the Siemens licensing system, the license key can be put in the Trusted Platform Module of the VM.

Package installation on Windows

• Download and install the free version of SafeKit on 2 Windows nodes.
  Note: the free version includes all SafeKit features. At the end of the trial, you can activate permanent license keys without uninstalling the package.
• Upon completing the package installation, select Set console credentials and firewall rules now and configure a password for the admin user of the SafeKit console.
  Set the same password on all nodes.
• Exclude from antivirus scans C:/safekit/ (the default installation directory) and all replicated folders that you are going to define.
  Antiviruses may face detection challenges with SafeKit due to its close integration with the OS, virtual IP mechanisms, real-time replication and restart of critical services.

Download SafeKit (Windows) >

Module installation on Windows

• Download the hyperv.safe module. The module is free. It contains the files userconfig.xml and the restart scripts.
• Put hyperv.safe under C:/safekit/Application_Modules/generic.

⬇️ Download hyperv.safe (Windows) >

Step by step configuration of the SafeKit / Hyper-V solution

Read carefully these items before starting:

• The Hyper-V configuration is presented with a virtual machine named VM1. Read carefully “1. Prerequisites” for the organization of VM1 files , otherwise recovery on the secondary node may fail with inconsistent data.
• You will have to repeat this configuration for all VMs that you want to replicate and to restart.
• The file system where the VM files replicated by SafeKit are stored must be NTFS; ReFS is not supported.
• SafeKit supports replication of Hyper-V production checkpoints but not standard checkpoints. Do not use standard checkpoints, otherwise recovery on the secondary node may fail with inconsistent data.

1. Prerequisites

For SafeKit replication, all VM1 virtual machine files (configuration file, virtual hard disk, etc.) must be stored in the same folder, even though this is not the default behavior of Hyper‑V (e.g., D:/Repli-Hyper-V/VM1, where VM1 is the name of the virtual machine).

If all the files of VM1 are not in the same folder, use Hyper-V manager:

• Export VM1 in a folder, for example in D:/Repli-Hyper-V
• This export will create a folder D:/Repli-Hyper-V/VM1 containing all VM1 files
• Remove VM1 from the inventory of Hyper-V manager
• Import VM1, previously exported, into Hyper-V manager

Take a snapshot or your VM before starting the procedure.

VM1 must only be created on a single node. The only thing to create on the other node is the VM1 directory (D:/Repli-Hyper-V/VM1).

Make sure the virtual switch name(s) referenced by the virtual machine exist on both Hyper-V servers and corresponds to the same physical network.

Hyper‑V module (hyperv.safe) failover may fail if VM migration prerequisites are not met. To detect compatibility issues between Hyper‑V nodes (hardware, network, configuration), see KB SK-0088 in this document.

2. Launch the SafeKit console

• Launch the web console in a browser on one cluster node by connecting to http://localhost:9010.
• Enter admin as user name and the password defined during installation.

You can also run the console in a browser on a workstation external to the cluster.

The configuration of SafeKit is done on both nodes from a single browser.

To secure the web console, see 11. Securing the SafeKit web service in the User's Guide.

3. Configure node addresses

• Enter the node IP addresses, press the Tab key to check connectivity and fill node names. If either node1 or node2 has a red color, check connectivity of the browser to both nodes and check firewall on both nodes for troubleshooting.
• Then, click on Save and apply to save the configuration.
• Check the Success ✅ message on both nodes.
• If the configuration Failure ❌ occurs on one node, open the ▼ accordion for that node and review the messages. Note that you can use the SafeKit AI 🤖 for assistance.

If you want, you can add a new `LAN and nodes` ( first ➕) to create a second heartbeat and a dedicated replication network.

If you click on `Advanced configuration`, the `cluster.xml` file is displayed. This file is automatically populated by the console and deployed on the nodes.

4. Select a module

• In New module, click on the hyperv.safe module.

In the blue banner at the top, 🛜 `node1` represents the console connection node. This node relays requests to `node2` when required.

The console looks for `xxx.safe` in the `Application_Modules/generic/` directory on the connection node (`node1`) if you placed a module there during installation.

5. Configure the module

• Choose an Automatic start of the module at boot without delay.
• Normally, you have a single Heartbeat network on which the replication is made. But, you can define a private network if necessary (by adding a LAN at step 3).
• Put in VM_PATH, the root path of the replicated directory (D:/Repli-Hyper-V).
• Enter in VM_NAME, the name of the virtual machine (VM1).

We assume that all VM1 files are in D:/Repli-Hyper-V/VM1 (see prerequisites). This directory will be replicated in real-time by SafeKit. Do not perform partial replication, as failover will not work.

The NORMAL_STOP and FORCE_STOP values can be “stop”, “save” or “off”:

• “stop” shutdowns the VM when the module is stopped.
• “save” saves the current state of the VM (suspend) when the module is stopped.
• “off” turns off the VM (power off) when the module is stopped.

“stop” is recommended because it causes the shutdown then the reboot of the VM when the module is stopped and restarted. Thus, if the application inside the VM fails, it is restarted.

This will be the case, for example, when switching between primary and secondary roles.

You do not need to configure a virtual IP address. VM1 will be rebooted on the secondary Hyper-V with its physical IP address, and this IP address will be rerouted.

When you apply the SafeKit configuration, the `Automatic Start Action` of the virtual machine is set to `Nothing` in Hyper-V. This ensures that the VM does not start automatically when the Hyper‑V host starts, but is instead started only when the module itself is started.

6. Custom checker to detect VM malfunction

The custom checker sends heartbeat messages from the host to the VM at regular intervals. It is then the job of the Hyper-V Heartbeat Service installed in the VM to send a response to each of these heartbeat messages.

If the Hyper-V Heartbeat Service does not respond to the message (VM locked up, crashed or ceased to function), then the custom checker executes an action to restart the VM on the same Hyper-V node or on the other.

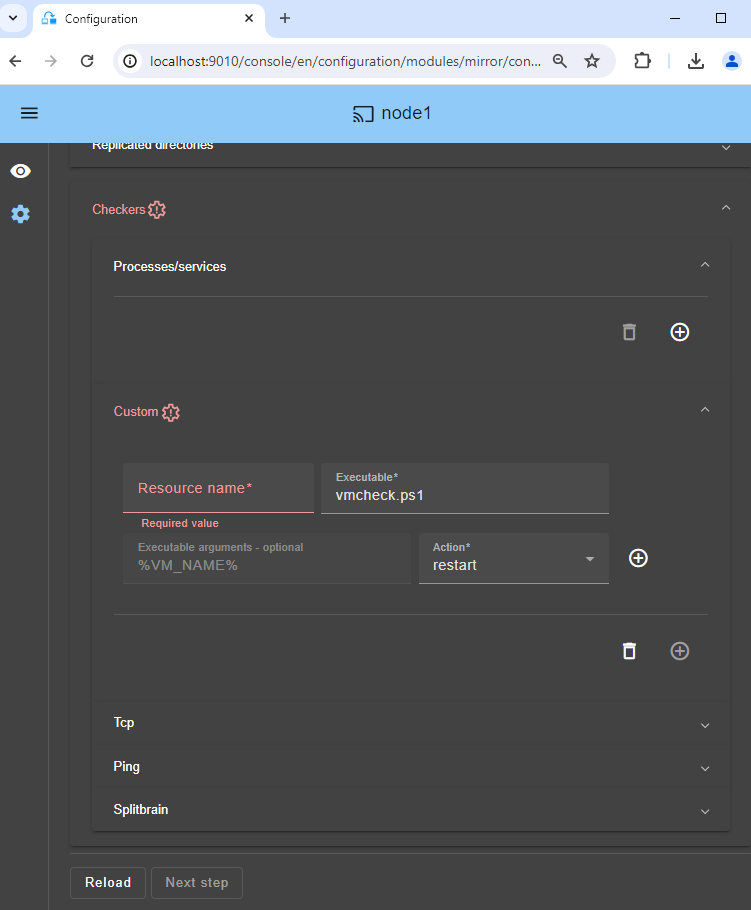

• Click on Checkers / Custom (see image).
• Just set a name of your choice in Resource name (example VM1). Resource name identifies the virtual machine with a resource name in SafeKit: custom.VM1.
• With restart in Action, the VM is restarted on the same Hyper-V node. After 3 unsuccessful restarts in 24 hours, the SafeKit hyperv module stops on the primary node and there is a failover of the VM on the secondary node.
• If you set stopstart in Action, there is a direct failover on the other Hyper-V node as soon as the VM does not respond to heartbeats.

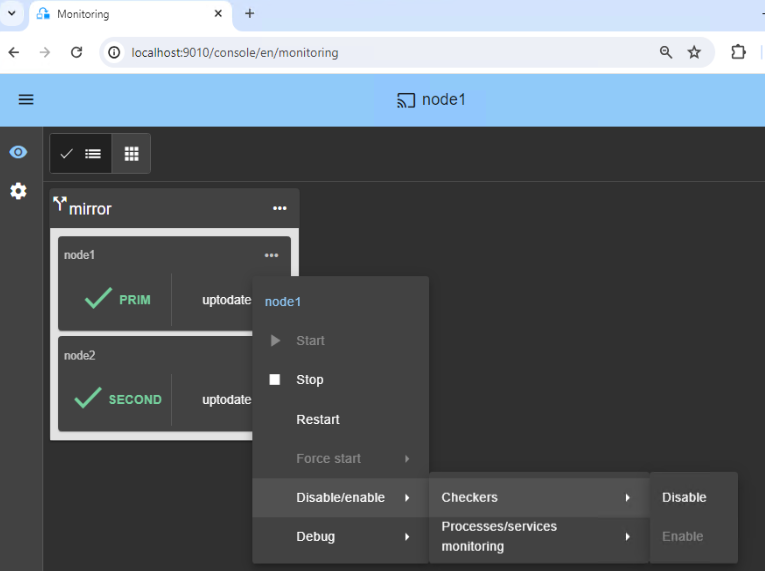

For maintenance, if you want to stop the virtual machine, the custom checker will restart it automatically. To avoid that, you can temporarly suspend the checker 🖼️. Or you can remove it by deleting the configuration line in the console.

It’s the same when you want to restore a checkpoint. Hyper-V will stop the VM to perform the operation, and the VM checker may react negatively by automatically restarting the VM. To avoid this, suspend the checker 🖼️ before proceeding with the operation.

7. Edit scripts (optional)

• Do not edit scripts.

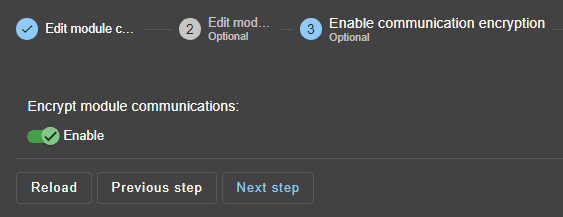

8. Communication encryption (optional)

• Keep encryption of communication between nodes.

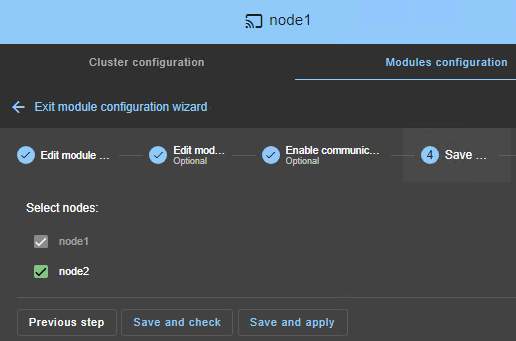

9. Save and apply

• Save and apply the configuration and scripts on both nodes.

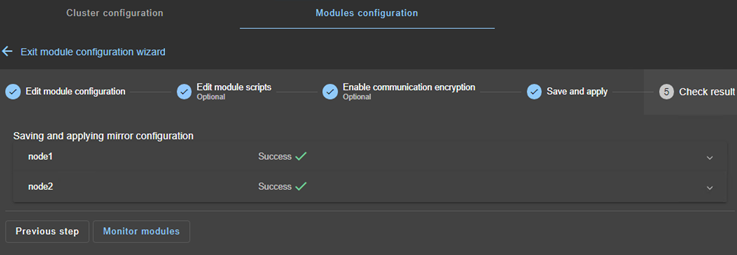

10. Verify successful configuration

• Check the Success ✅ message on both nodes and click on Monitor modules.
• If the configuration Failure ❌ occurs on one node, open the ▼ accordion for that node and review the messages. Note that you can use the SafeKit AI 🤖 for assistance.

11. Start the node with up-to-date data

• If node 1 has the up-to-date replicated directory for VM1/, select it and ⋯ Force start ▶ As primary.

When node 2 will be started, all data will be copied from node 1 to node 2.

If you make the wrong choice, you run the risk of synchronizing outdated data on both nodes.

It is also assumed that `VM1` is stopped on node 1 so that SafeKit installs the replication mechanisms and then starts `VM1` in the `start_prim` script.

Use `Start` for subsequent starts: SafeKit retains the most up-to-date server. Starting `As primary` is a special start-up the first time or during exceptional operations.

12. Wait for the transition to ALONE (green)

• Node 1 should reach the ALONE (green) state, which means that the start_prim script has been executed on node 1.

If ALONE (green) is not reached or if VM1 is not started, analyze why with the module log 🖼️ of node 1.

• Click the 🔍 log icon of node1 to open the module log and look for error messages such as a checker detecting an error and stopping the module.
• Click on start_prim in the log: output messages of the script are displayed on the right and errors can be detected such as VM1 incorrectly started.
• Use the SafeKit AI 🤖 for assistance with log messages.

If the cluster is in `WAIT (red) not uptodate, STOP (red) not uptodate` state, stop the WAIT node and force its start as primary 🖼️.

13. Start node 2

• ⋯ Start node 2 with its contextual menu.
• Wait for the SECOND (green) state.

Node 2 stays in the SECOND (orange) state while resynchronizing the replicated directories (copy from node 1 to node 2).

This may take a while depending on the size of files to resynchronize in replicated directories and the network bandwidth.

To see the progress of the copy, see the module log 🖼️ and the replication resources 🖼️ of node 2. Use the SafeKit AI 🤖 for assistance with log messages.

When using Hyper-V differencing disks, only the differencing disk needs resynchronization after the initial sync, saving time for large virtual hard disks.

14. Verify that the cluster is operational

• Check that the cluster is green/green with VM1 running on the PRIM node and not running on the SECOND node.

Only changes inside files are replicated in real time in this state.

15. Testing

• Stop the PRIM node by scrolling down its contextual menu and clicking Stop.
• Verify that there is a failover on the SECOND node which should become ALONE (green).
• Check with Hyper-V manager that VM1 is running on node 2.

If ALONE (green) is not reached on node2 or if VM1 is not started, analyze why with the module log 🖼️ of node 2.

• Click the 🔍 log icon of node2 to open the module log and look for error messages such as a checker detecting an error and stopping the module.
• Click on start_prim in the log: output messages of the script are displayed on the right and errors can be detected such as VM1 incorrectly started.
• Use the SafeKit AI 🤖 for assistance with log messages.

As the `start_prim` script imports the virtual machine on node 2, the failover can fail because of Hyper-V settings (see KB SK-0088 in this document).

If everything is okay, initiate a start on node1, which will resynchronize the replicated directories from node2.

If things go wrong, stop node2 and force the start as primary 🖼️ of node1, which will restart with its locally healthy data at the time of the stop.

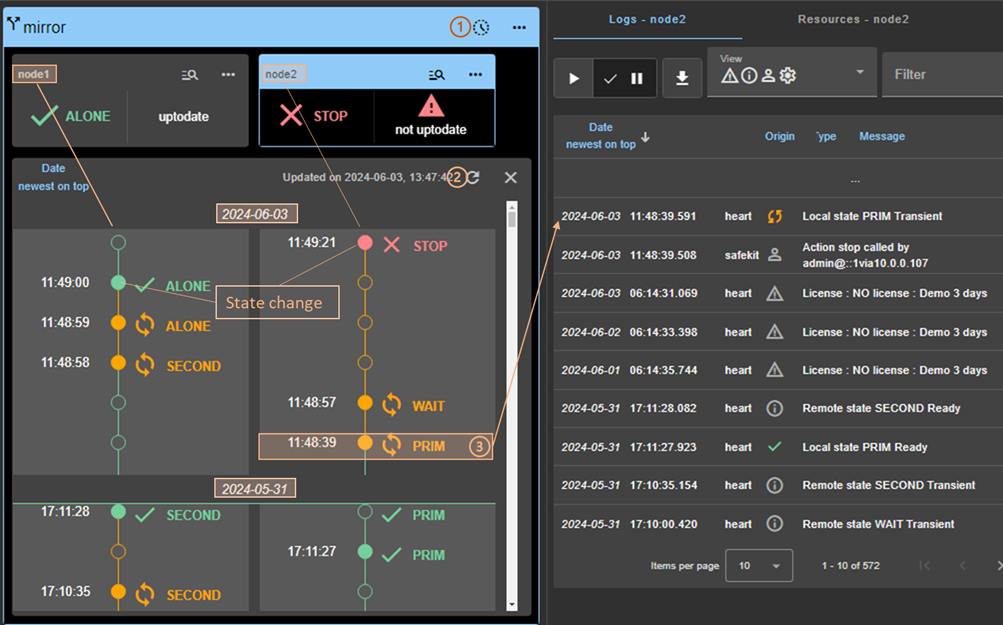

Note that you have a 🕒 **timeline 🖼️** that can be helpful to understand what happens in the cluster.

16. If necessary, configure a splitbrain checker

• See What are the different scenarios in case of network isolation in a cluster? to know if you need to configure a splitbrain checker.

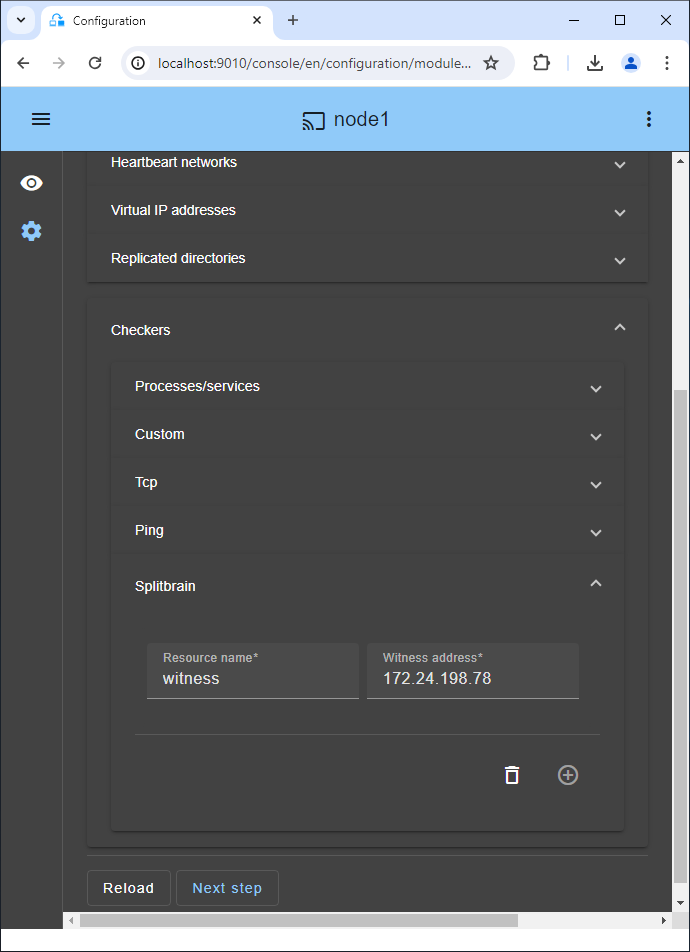

• Go to the module configuration and click on Checkers / Splitbrain (see image) to edit the splitbrain parameters.
• Save and apply the new configuration to redeploy it on both nodes (module must be stopped on both nodes to save and apply).

Parameters :

• Resource name identifies the witness with a resource name: splitbrain.witness. You can change this value to identify the witness.
• Witness address is the argument for a ping when a node goes from PRIM to ALONE or from SECOND to ALONE. Change this value with the IP of the witness (a robust element, typically a router).
• Note: you can set several IPs separated by white spaces. Pay attention that the IP addresses must be accessible from one node but not from the other in the event of network isolation.

17. Automatic restart if a critical service fails inside the VM

If you want an automatic restart or failover when a critical service inside the VM fails, you can configure the Recovery properties of the service (see image).

First you must configure the VM custom checker previously described.

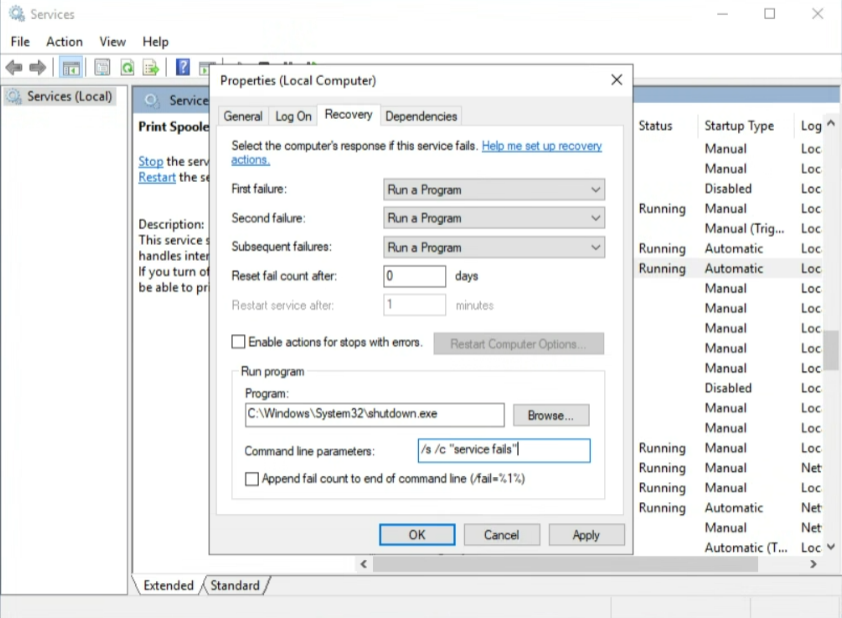

And then in Microsoft Service Manager inside the VM, select your critical service and in the recovery property of the service, you just have to configure shutdown of the VM when the critical service fails.

For that, in the Recovery options of your critical service, choose “Run a Program " on failures and in Run program options, set”C:/Windows/System32/shutdown.exe " and in “Command line parameters”, set /s /c “service fails”.

Of course, you can implement more subtle recovery with your own scripts. But just be aware that shutting down the VM will enable the custom checker in the host. The custom checker will detect that the Hyper-V heartbeat is no more responding and will restart the VM on the same Hyper-V server or will make a failover on the other Hyper-V server (depending on its configuration).

To test the feature, use Task Manager and kill the process (End task) associated to the critical service. A clean stop of the service through Service Manager or the “net stop” command does not trigger the recovery action inside Windows Service Manager.

18. Support

• For getting support, take 2 SafeKit Snapshots (2 .zip files), one for each node.

More information on the support here.
